[Spring Boot 실습 #5] Swagger UI 활용 (2) - spring fox 추가

Spring Boot : Swagger UI 활용 (2) - spring fox 추가

spring fox 라이브러리의 Swagger UI를 활용하여 spring boot 프로젝트에 매핑된 controller 테스트



• Swagger : 정의, 활용
• 개발환경 : Java, Maven, Spring-fox
• 라이브러리 다운로드 (pom.xml)
• 설정 : application.properties / application.yml
• Hello World : 기본 호출 테스트 - default controller
• swagger 설정 추가
• 문자열 List 반환 테스트





# 개발환경



자바 Java	OpenJDK 1.8.0_292
Spring	Spring-Boot 2.4.5
편집기 IDE	IntelliJ
빌드/의존성 관리 Build / Library Management	Maven

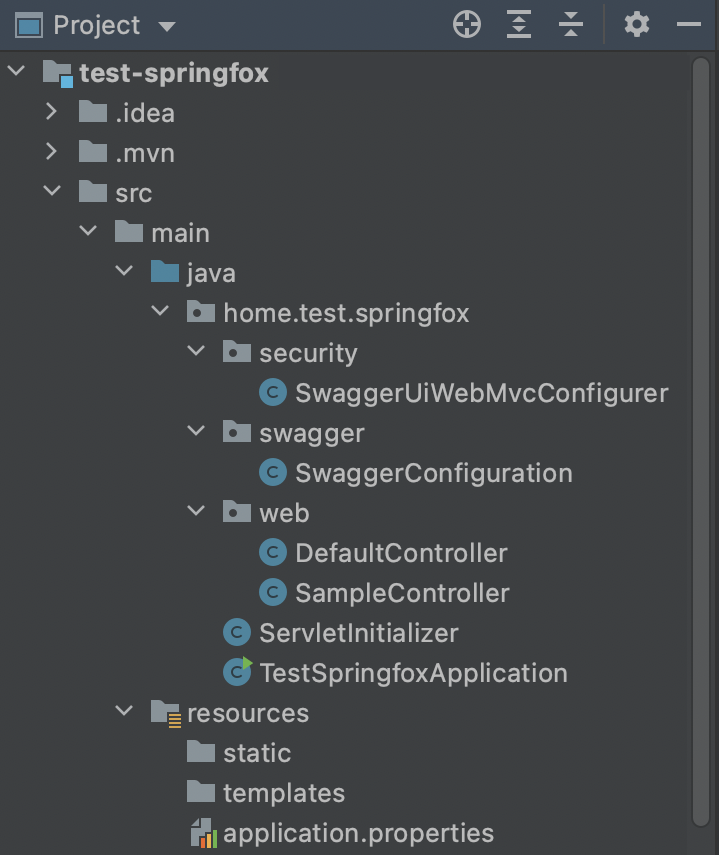

# 프로젝트 구조





# 라이브러리 다운로드 (pom.xml)



spring fox dependency 추가

<!-- Spring Fox Dependencies -->
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>2.9.2</version>
</dependency>
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger-ui</artifactId>
    <version>2.9.2</version>
</dependency>



pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.4.5</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>home.test.springfox</groupId>
    <artifactId>test-springfox</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>war</packaging>
    <name>test-springfox</name>
    <description>Spring Boot project for swagger test(spring fox dependency)</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>com.h2database</groupId>
            <artifactId>h2</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <!-- <scope>provided</scope>-->
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!-- https://mvnrepository.com/artifact/javax.validation/validation-api -->
        <dependency>
            <groupId>javax.validation</groupId>
            <artifactId>validation-api</artifactId>
            <version>2.0.1.Final</version>
        </dependency>

        <!-- Spring Fox Dependencies -->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>






# 설정 (application.properties)



###### Server Properties  ###########################################
#server.port=9091
server.port=8081

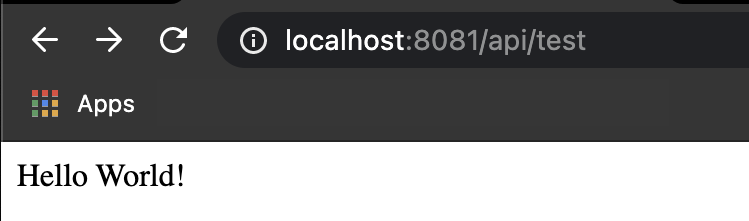

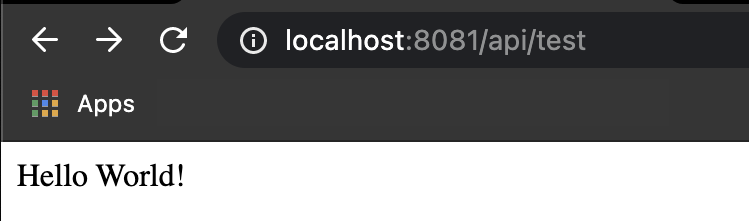

# Hello World (기본 호출 테스트 - default controller)

[ DefaultController.java ]

package home.test.springfox.web;

import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.servlet.mvc.support.RedirectAttributes;
import org.springframework.web.servlet.view.RedirectView;

@RestController
@RequestMapping
public class DefaultController {

    @GetMapping(value = "/")
    public RedirectView redirectView(RedirectAttributes attributes) {
        return new RedirectView("/api/test");
    }

    @GetMapping(value = "/api/test")
    public ResponseEntity<String> testApiCall() {
        return ResponseEntity.ok("Hello World!");
    }

}

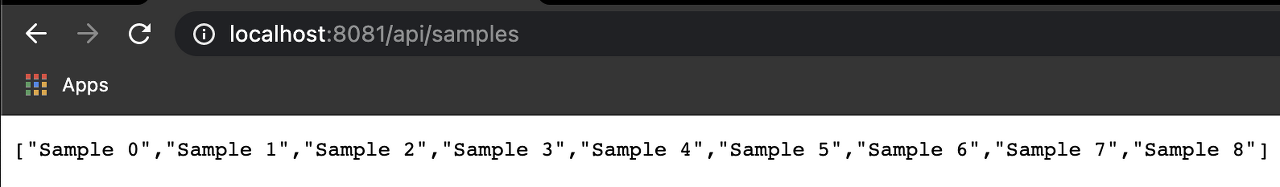

# 문자열 List 반환 테스트

[ SampleController.java ]

package home.test.springfox.web;

import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.ArrayList;
import java.util.List;

@RestController
@RequestMapping(value = "/api/samples")
public class SampleController {

    @GetMapping
    public ResponseEntity<List<String>> findAllSamples() {
        List<String> sampleList = new ArrayList<>();
        for (int i = 0; i < 9; i++) sampleList.add("Sample " + i);
        return ResponseEntity.status(HttpStatus.OK).body(sampleList);
    }

}
